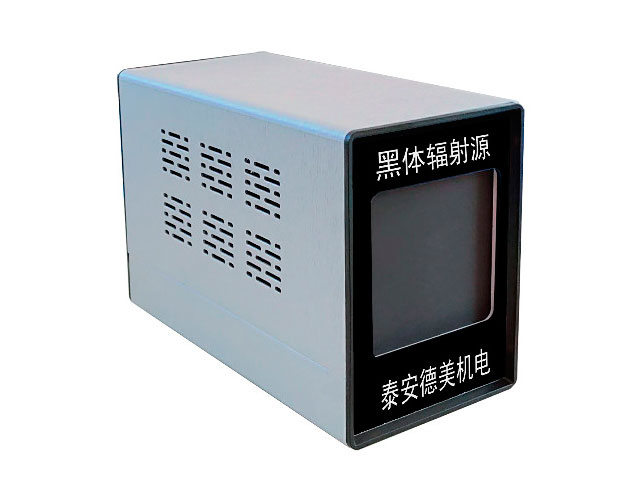

DY-HTX1 Thermal Imaging Infrared Temperature Calibration Equipment(35℃~45℃)
◇ Product Introduction ◇ Product Features◇ Technical Indicator
[Product Introduction]
1, more portable, more light.More precision.
2, light weight: the weight of the host is only 1.5 kg.
3, the equipment can be fixed on the mobile bracket, so as to facilitate the use of special industries.
4, temperature setting, simple operation.Rapid heating, temperature control.
[Technical indicators]
Temperature range: 35℃~45℃ adjustable
Operating temperature :(35℃, 37℃, 40℃) optional, automatic operation
Radiant surface: 78mm×78mm
Temperature resolution: 0.1℃
Temperature stability: ± (01.-0.2) ℃
Temperature uniformity: ±0.2℃
Emissivity: 0.97±0.02
Factory Emissivity Setting: 0.95
Power supply: 220V AC 50Hz
Dimension/weight: 190mmX110mmX150mm/≤2.0kg
Ambient temperature/humidity: 0℃~30℃ / ≤80%RH
Optional: optional RS485 communication interface
Note: can increase the wireless operation function, real-time view, real-time operation, to solve the problems of hoisting, temperature debugging.
