【Product Use】

The split portable high-temperature short-cavity blackbody furnace is mainly used for calibrating and verifying various radiation thermometers, such as optical pyrometers, infrared thermometers and infrared thermal imaging cameras. It has a wide range of applications in many fields such as temperature measurement, optical research, material testing, high-energy physics experiments, national defense and military industry, and infrared technology. At present, our company has advanced blackbody technology, a full range of products, and a wide range of blackbody products. The product is small in size, light in weight and easy to carry, which is not only suitable for laboratory calibration of radiation thermometers in metrology institutions at all levels, but also can be used for on-site calibration.

【Product Features】

(1) Controller: Integrated temperature control function. It is equipped with an RS232/485 communication interface as standard, which is used to connect to the host computer, which can write or receive data to the controller in accordance with the agreed communication format and realize the control function.

(2) It adopts automatic temperature raising and temperature control mode, which is safe and reliable, fast heating speed and good temperature stability.

(3) The product is more portable and compact. It can meet the special size requirements of customers.

(4) The communication interface can be customized with RS232

(5) The device has a memory function, and it can quickly return to the previous setting state after restarting, without the need for additional settings to start.

【Technical Parameters】

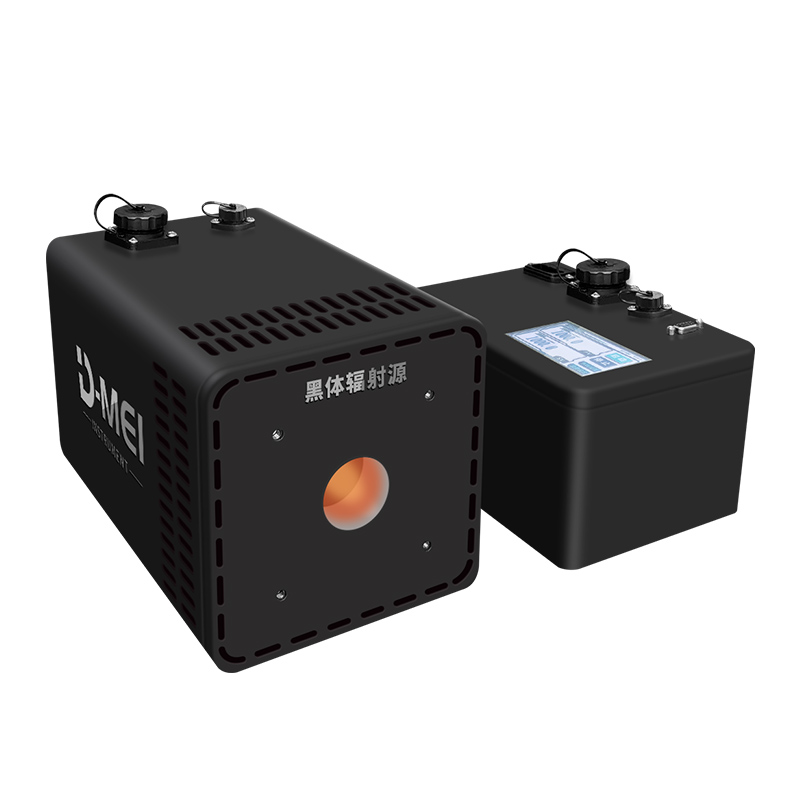

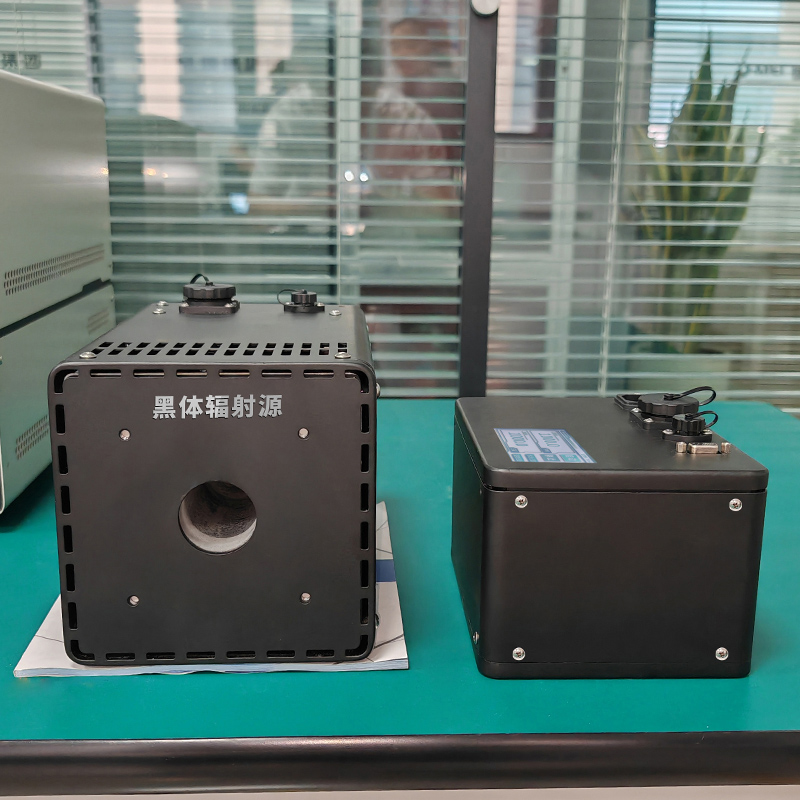

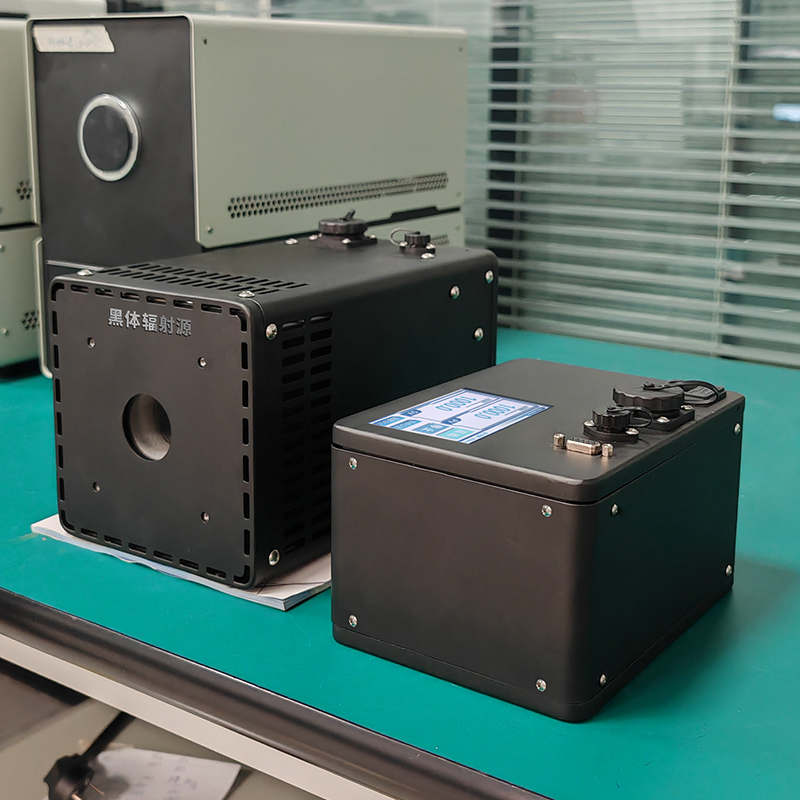

Name: Split portable high temperature short cavity black body furnace

Product model: DY-HT3F-D

Temperature range: 300℃～1000℃

Resolution: 0.1℃

Emissivity: 0.99

Display screen: 4.3 inches (Special requirements can be noted)

Temperature fluctuation: <1℃ (after temperature stabilization)

Temperature uniformity: not more than ± (0.2℃ and 0.2%t, t is the radiation source temperature)

Cavity diameter: F40mm

Cavity depth: 100mm

Black body furnace size: not more than 165mm×165mm×270mm

Black body furnace weight: <6kg

Controller size: ≤227mm×224mm×127mm

Black body complete set (including controller): ≤10KG

Power supply: 220V AC 50Hz

Communication method: Support 232 communication (if 485 communication is required, specific communication is required)
